IGBT Module
PRODUCT LIST
IGBT Module
IGBT 600V (V1,V2,V3), IGBT 1200V (V1,V2,V3), Diode 600V (A1)
저희 영광산전은 오랜 기간 전력제어반도체(Semiconductor), Thyristor/SCR, Diode, Module, IGBT, SSR등 산업 현장에 필요한 전력전자부품을 전문적으로 취급해 왔습니다.
각종 부품의 구매 외에도 상담을 통해 OEM 생산이 가능합니다. 자세한 사항은 언제든 문의해 주십시오.
IGBT 600V - V1/V2/V3 Series |
|---|
- IGBT 600V - V1 Series
| Part Number/Name (PDF) |
Series | Vces | Ic | Vce(sat) |
|---|---|---|---|---|
| DGM100D06SV1 | S | 600V | 100A | 2.2V |
| DGM100D06VV1 | V | 600V | 100A | 2.0V |
| DGM75D06SV1 | S | 600V | 75A | 1.9V |
| DGM150D06AV1 | A | 600V | 150A | 1.5V |
| DGM100D06AV1 | A | 600V | 100A | 1.5V |
| DGM75D06AV1 | A | 600V | 75A | 1.5V |
- IGBT 600V - V1 Series Package Outline
- IGBT 600V - V2 Series
| Part Number/Name (PDF) |
Series | Vces | Ic | Vce(sat) |
|---|---|---|---|---|
| DGM200D06SV2 | S | 600V | 200A | 2.2V |
| DGM150D06SV2 | S | 600V | 150A | 1.9V |
| DGM200D06AV2 | A | 600V | 200A | 1.5V |
- IGBT 600V - V2 Series Package Outline

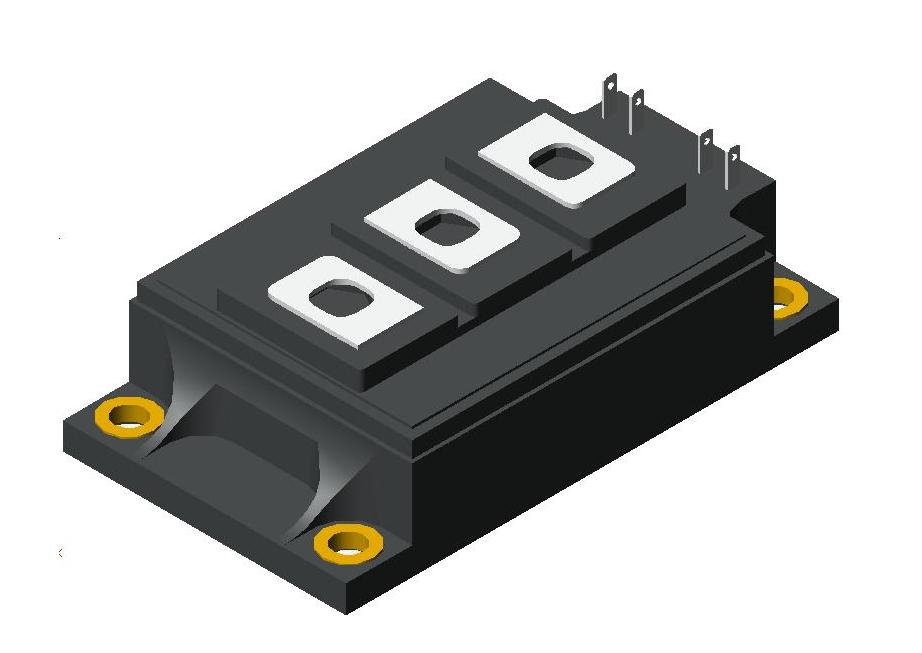

- IGBT 600V - V3 Series
| Part Number/Name (PDF) |
Series | Vces | Ic | Vce(sat) |
|---|---|---|---|---|
| DGM400D06AV3 | A | 600V | 400A | 1.5V |
| DGM300D06AV3 | A | 600V | 300A | 1.5V |

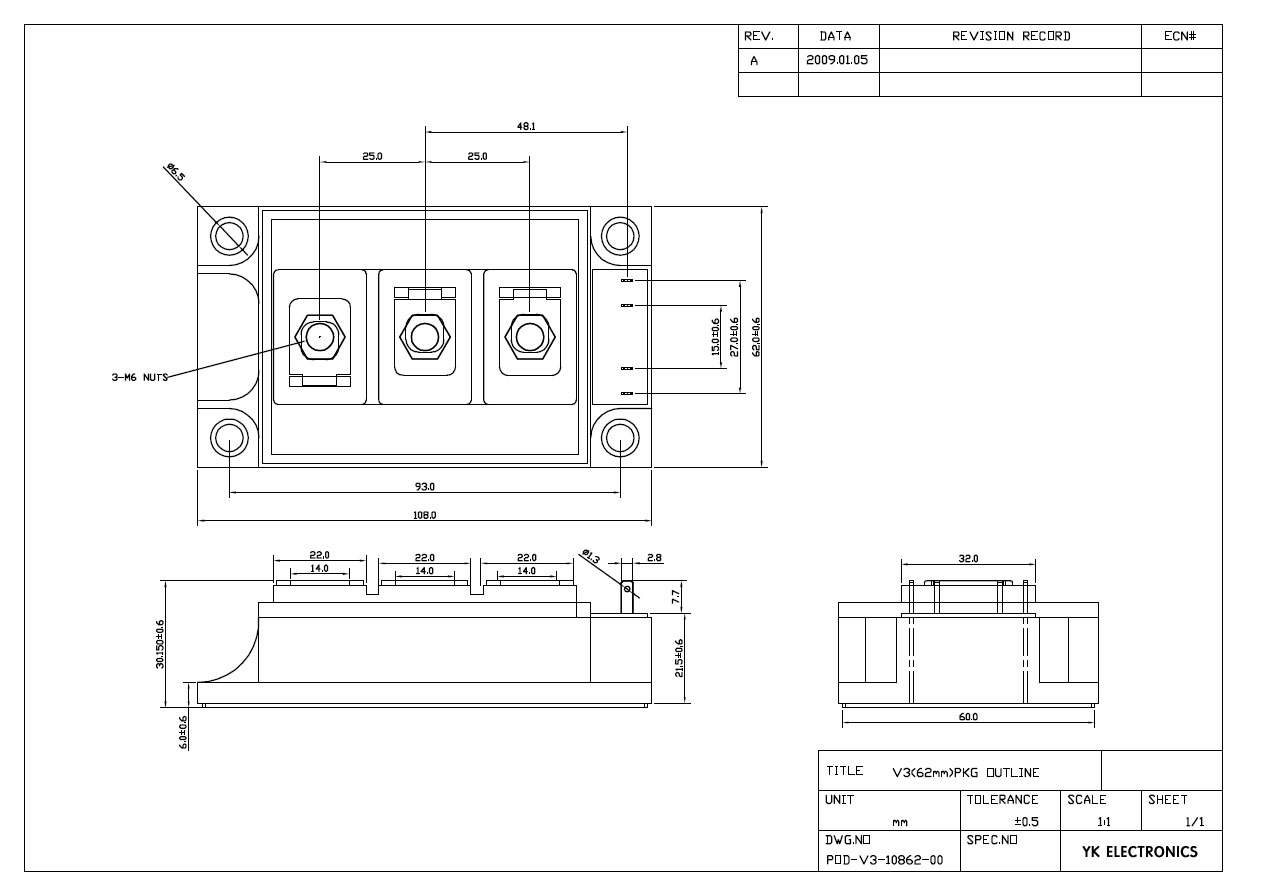

- IGBT 600V - V3 Series Package Outline
IGBT 1200V - V1/V2/V3 Series |
|---|

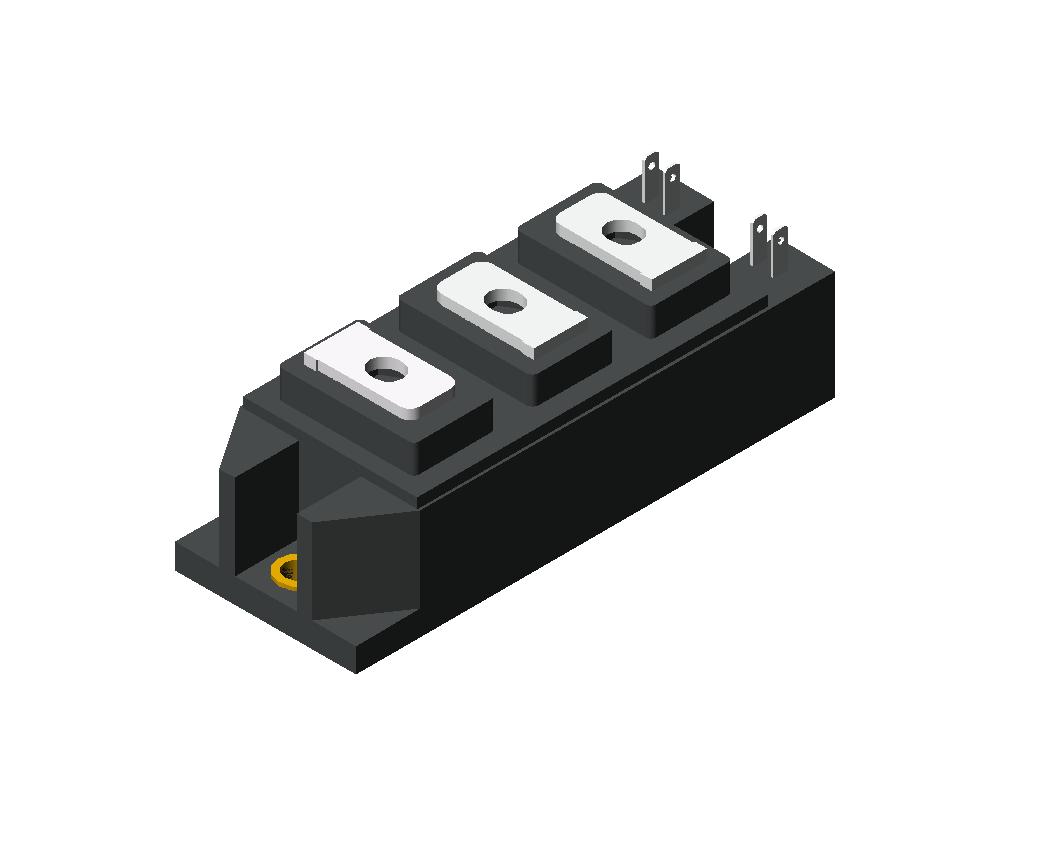

- IGBT 1200V - V1 Series
| Part Number/Name (PDF) |
Series | Vces | Ic | Vce(sat) |
|---|---|---|---|---|
| DGM100D12SV1 | S | 1200V | 100A | 3.2V |
| DGM75D12SV1 | S | 1200V | 75A | 2.8V |
| DGM100D12AV1 | A | 1200V | 100A | 1.8V |
| DGM75D12AV1 | A | 1200V | 75A | 1.8V |

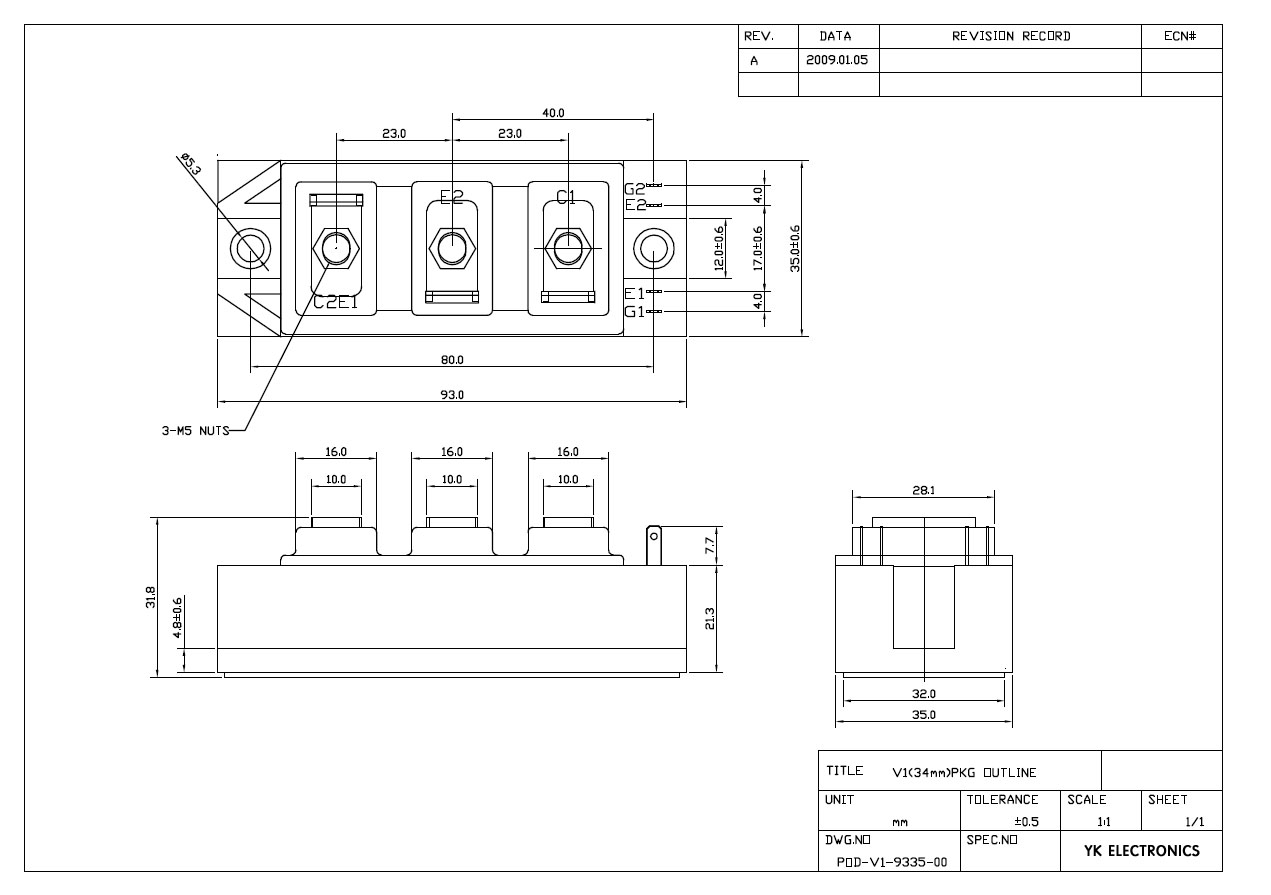

- IGBT 1200V - V1 Series Package Outline

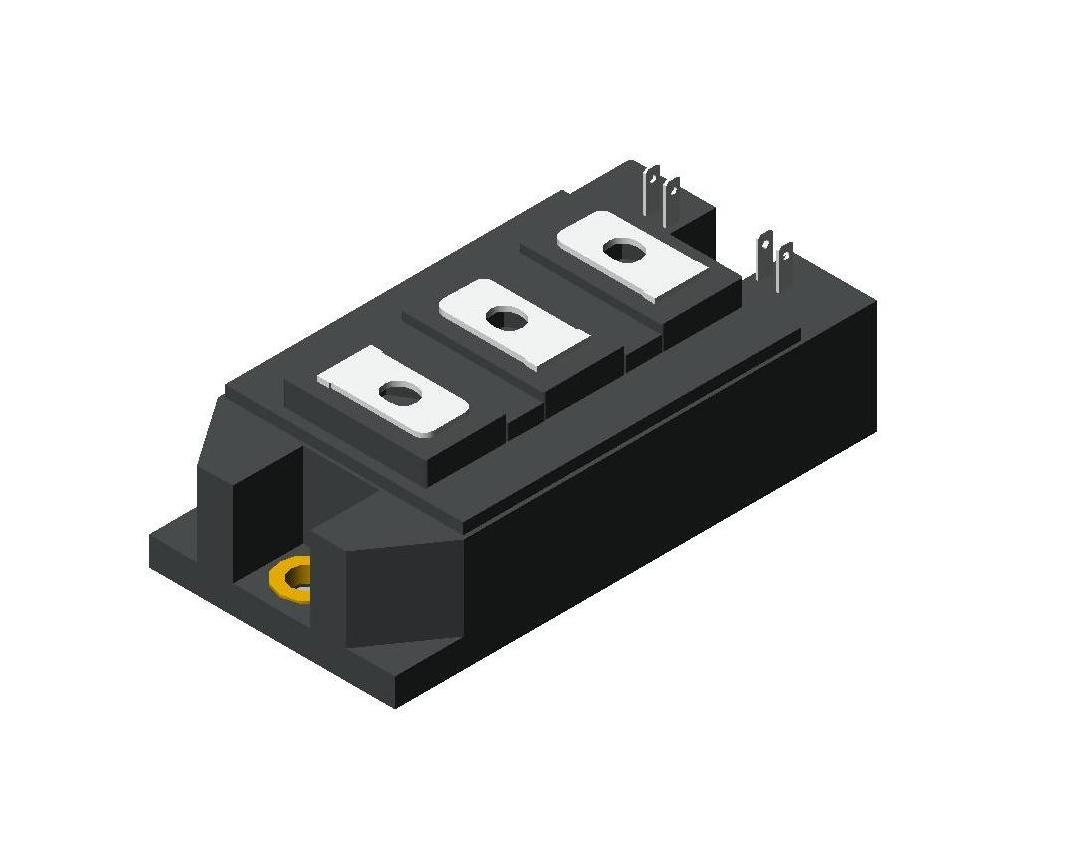

- IGBT 1200V - V2 Series
| Part Number/Name (PDF) |
Series | Vces | Ic | Vce(sat) |
|---|---|---|---|---|
| DGM150D12AV2 | A | 1200V | 150A | 1.8V |

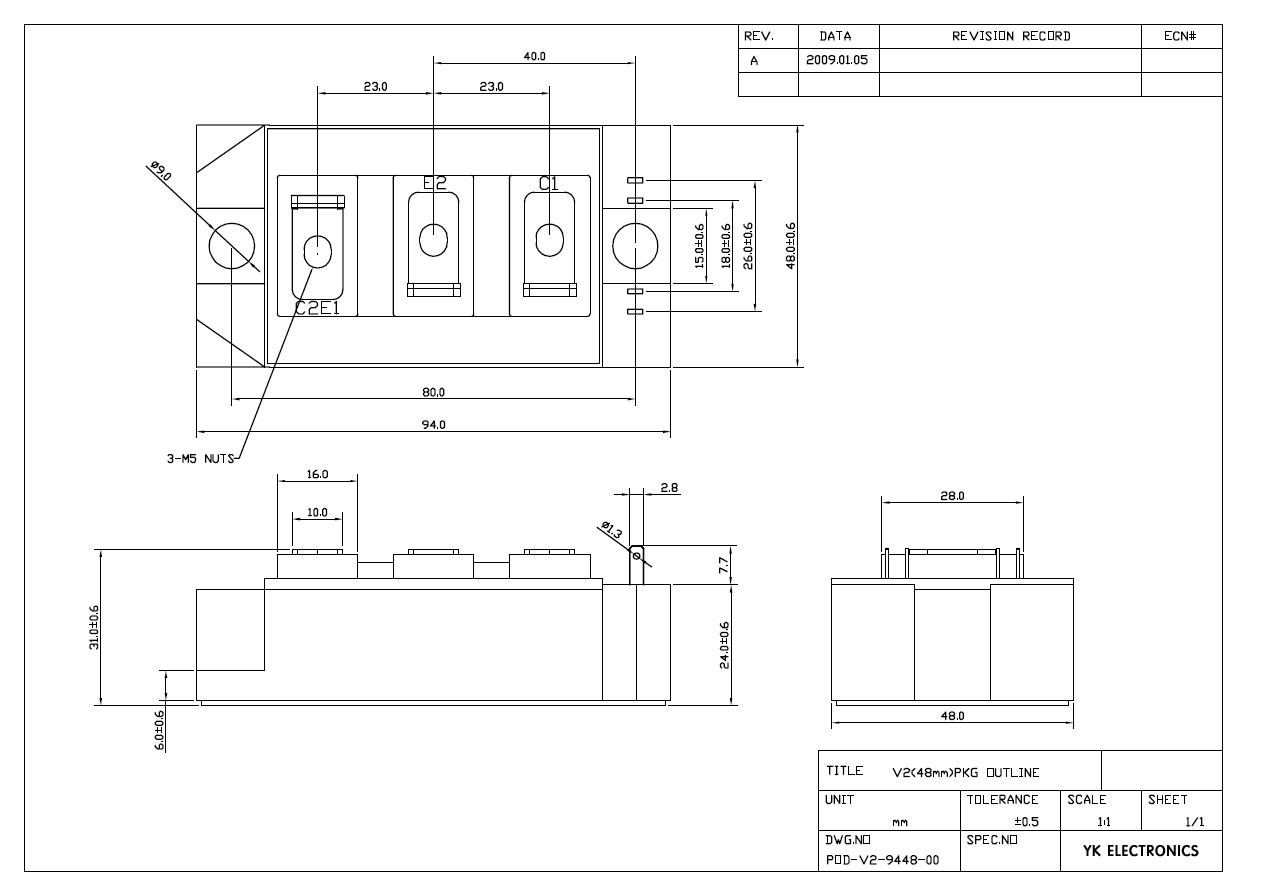

- IGBT 1200V - V2 Series Package Outline
- IGBT 1200V - V3 Series
| Part Number/Name (PDF) |
Series | Vces | Ic | Vce(sat) |
|---|---|---|---|---|
| DGM200D12SV3 | S | 1200V | 200A | 3.2V |
| DGM150D12SV3 | S | 1200V | 150A | 2.8V |
| DGM300D12AV3 | A | 1200V | 300A | 1.8V |
| DGM200D12AV3 | A | 1200V | 200A | 1.8V |
- IGBT 1200V - V3 Series Package Outline

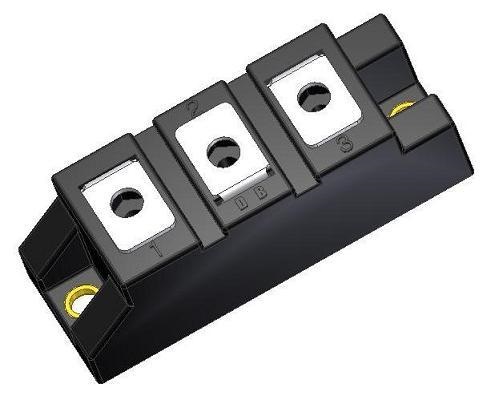

Diode 600V - A1 Series |
|---|
- Diode 600V - A1 Series
| Part Number/Name (PDF) |
VRRM(V) | IF(A) | VF(V) | Trr(ns) |
|---|---|---|---|---|
| D1DM300H06NA1 | 600 | 300 | 1.50 | 180 |
| D2DM200C06PA1 | 600 | 200 | 1.50 | 180 |
| D2DM200C06NA1 | 600 | 150 | 1.50 | 160 |
| D2DM150C06PA1 | 600 | 200 | 1.50 | 180 |
| D2DM150C06NA1 | 600 | 150 | 1.50 | 160 |

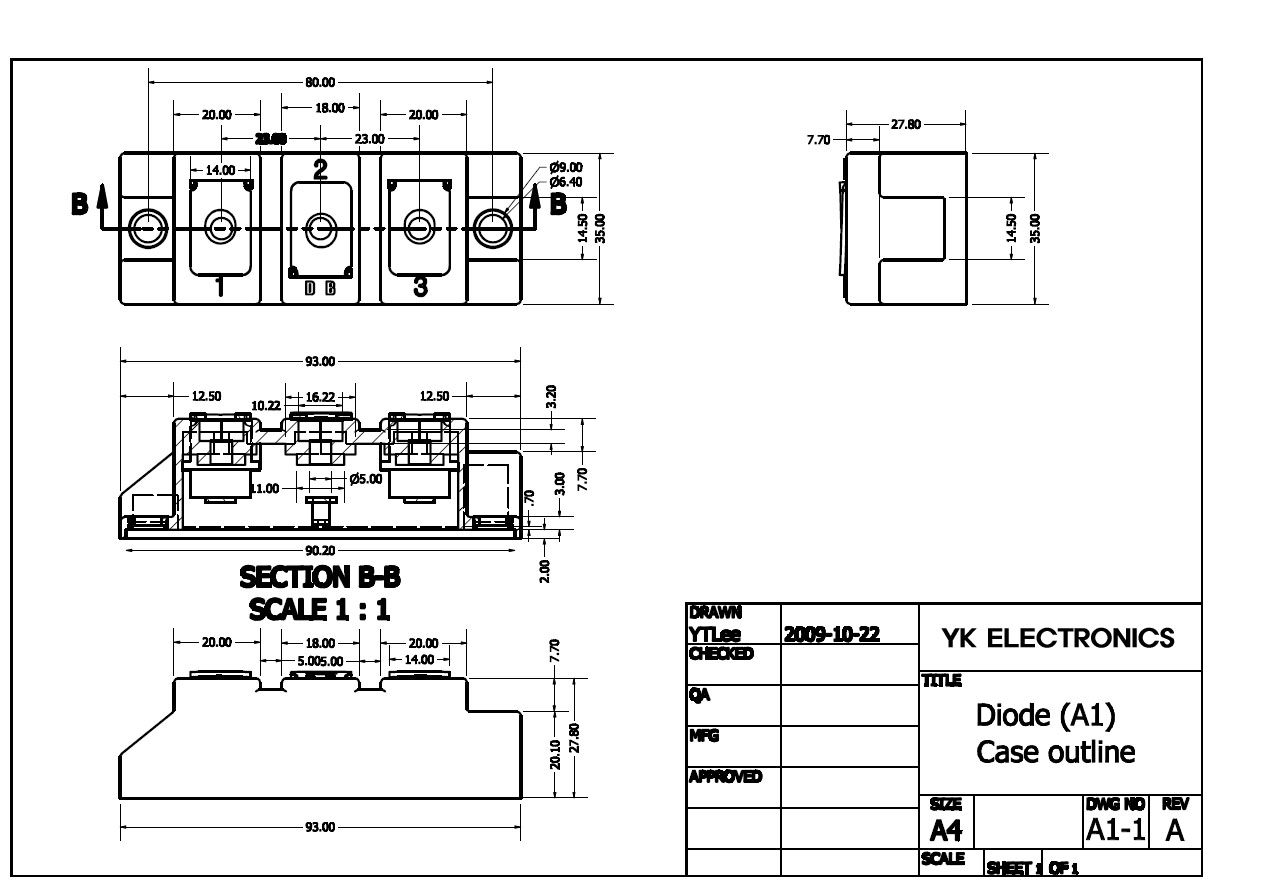

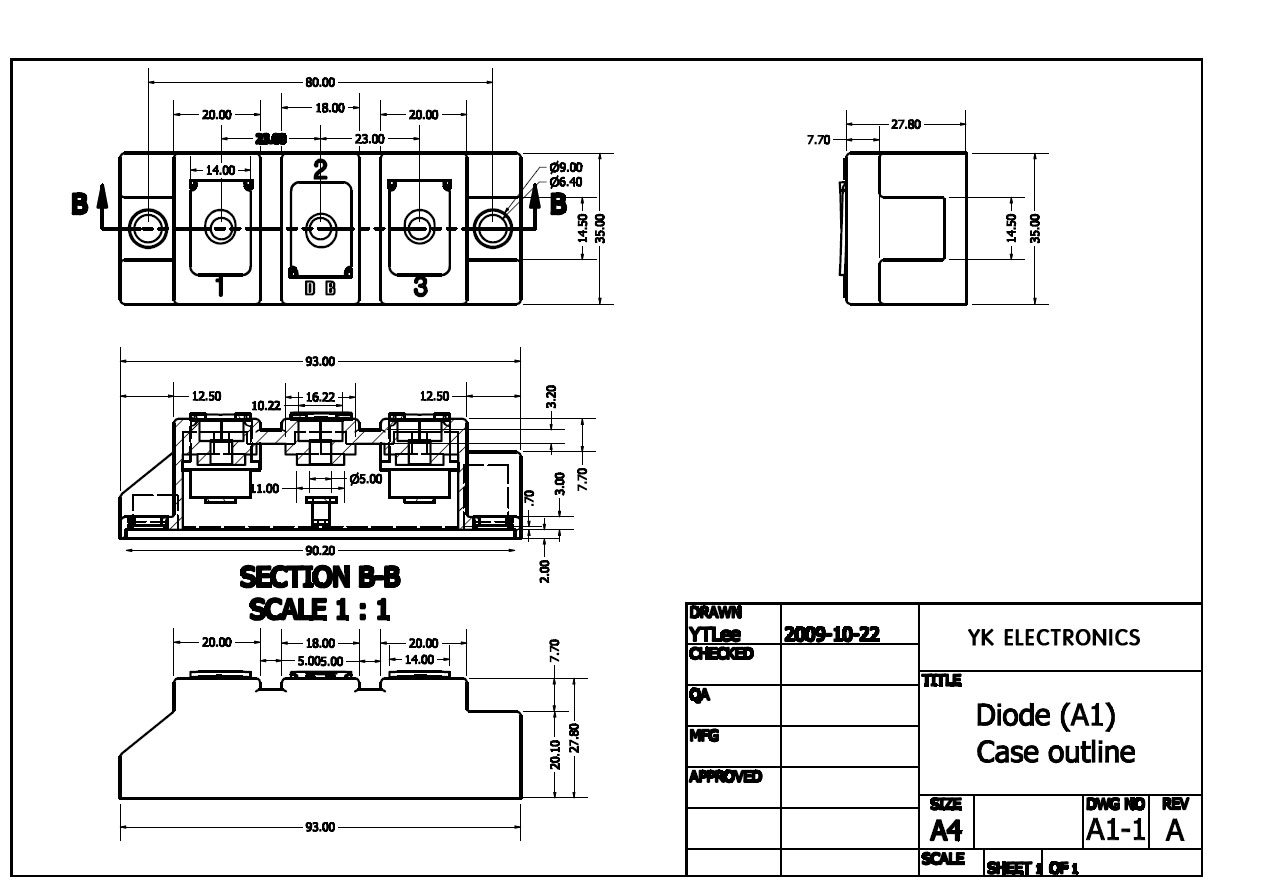

- Diode 600V - A1 Series Package Outline
